AMBER PARKING/REAR TURN SIGNAL, HARD WIRED (RED=TURN, BLACK=PARK, WHITE=GROUND), 5-IN. LEADS.

STL78/88 SERIES – 6" OVAL SEALED LED LIGHTS FOR SURFACE MOUNT

• SONICALLY SEALED, WATERPROOF
• MOUNT IN ANY 360 DEGREE POSITION
• FLANGE SURFACE MOUNT–NO PANEL CUT-OUT REQUIRED
• HARD WIRED (SEE DETAILS BELOW)
• OPTIONAL MOLDED CONNECTORS
• AVAILABLE IN BULK, POLYPACK AND RETAIL PACKAGING
• LIFETIME LED WARRANTY

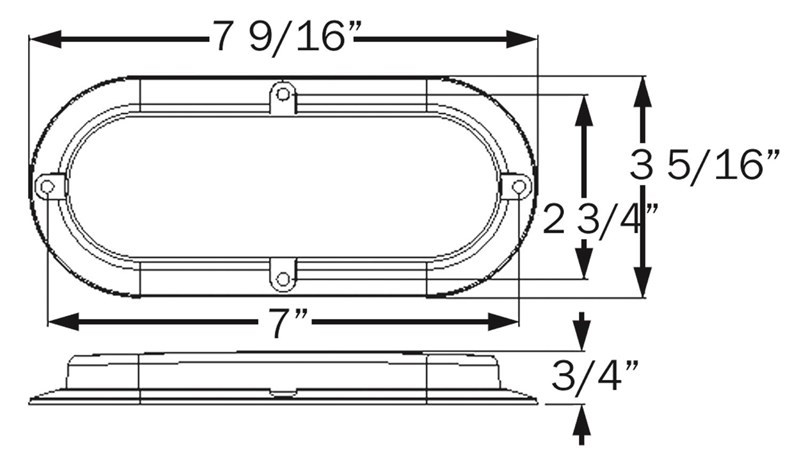

SPECIFICATIONS: DIODES: 10; FMVSS: RED: S2 T2 I6; YELLOW: I6 P; MATERIALS: POLYCARBONATE LENS AND HOUSING; VOLTAGE/AMPS: 12.8VDC – .243A STOP/TURN, .046A TAIL; WEIGHT/DIMENSIONS: .265 LBS. / 7.563" X 3.313" X 0.750"; WARRANTY: LIFETIME LED WARRANTY

PACKAGING: BULK

ALSO AVAILABLE AS: STL78ABP (POLYPACK)
