11-LED RED THINLINE STOP/TURN/TAIL LIGHT WITH BUILT-IN REFLEX, HARD WIRED (RED=STOP/TURN, BLACK=TAIL, WHITE=GROUND), 7-IN. LEADS.

STL69 SERIES – THINLINE SEALED 11-LED 15-IN. STOP/TURN/TAIL LIGHTS

• SONICALLY SEALED, WATERPROOF

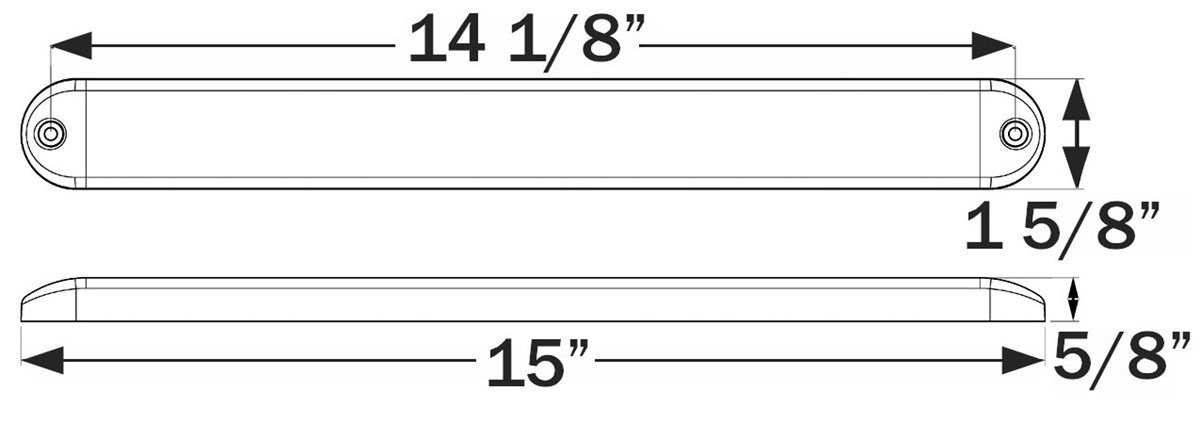

• LOW PROFILE DESIGN–ONLY 5/8" THICK
• SURFACE MOUNT ON 14-1/8" CENTERS; OPTIONAL GASKET
• STL69RRXB MEETS SAE S2 T2 I6 FOR OVER 80" WIDE VEHICLES AND HAS BUILT-IN REFLEX MEETING SAE A
• HARD WIRED (RED=STOP/TURN, BLACK=TAIL, WHITE=GROUND); 7-IN. LEADS
• AVAILABLE WITH OPTIONAL MOLDED PLUGS
• LIFETIME LED WARRANTY

SPECIFICATIONS: DIODES: 11; FMVSS: STL69 – S T I; STL69RRX – S2 T2 I6 A; MATERIALS: POLYCARBONATE LENS AND HOUSING; VOLTAGE/AMPS: 12.8VDC – .350A STOP, .022 TAIL; WEIGHT/DIMENSIONS: .441 LBS. / 15" X 1.375" X .625"; WARRANTY: LIFETIME LED WARRANTY

PACKAGING: BULK

ALSO AVAILABLE AS: STL69RRXBP (POLYPACK)
